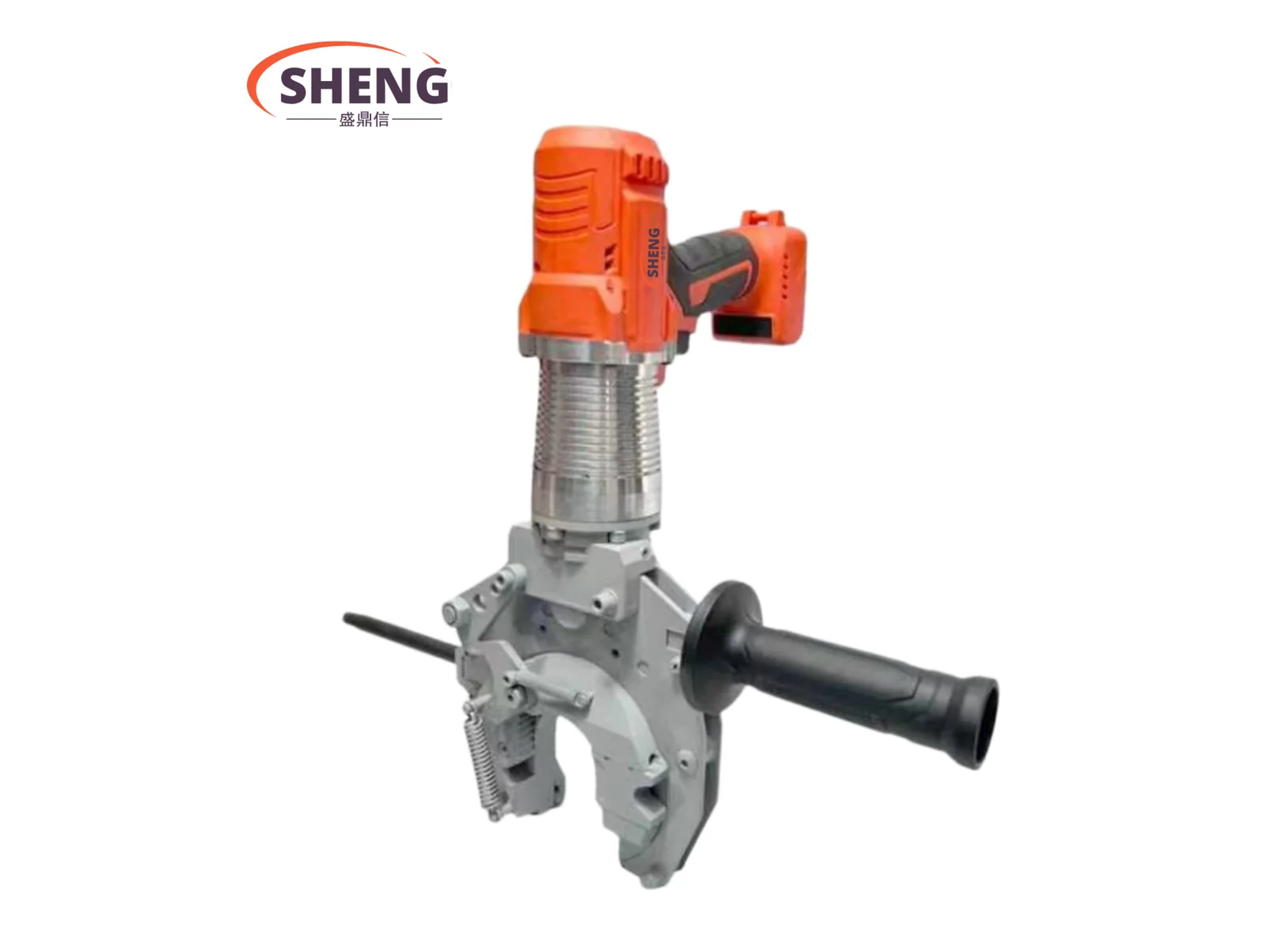

SDX-10ET Electric Pipe Wrench

Maximum torque: 1,000 N·m
Power: 900 W
Clamping range: 20–63 mm
Power supply: Battery / dual-purpose

Product overview

Electric pipe work for installation and maintenance

MEP Applications

Applications in MEP Installation

When a job includes a mix of pipe fitting sizes, check whether the SDX-10ET range covers the outside diameters required for the installation.

MEP contractors can review this model for repeated fitting installation across fire protection, HVAC and plumbing systems. Include both threaded steel connections and PVC pipe fitting tasks in the job description; SDX has tested the series for PVC work. When moving between mechanical rooms and service shafts, consider battery operation and the space needed to grip each fitting. Send the actual fitting sizes for selection support.

SDX-10ET has a 20–63 mm clamping range and a 170 mm head width.

Explore MEP Pipe Installation Applications

Technical data

Technical Specifications

Maximum torque	1,000 N·m
Maximum speed	36 r/min
Power	900 W
Voltage	21 V / 110 V / 230 V
Clamping range	20–63 mm
Head width	170 mm
Power supply	Battery / dual-purpose
Net weight	6.5 kg
