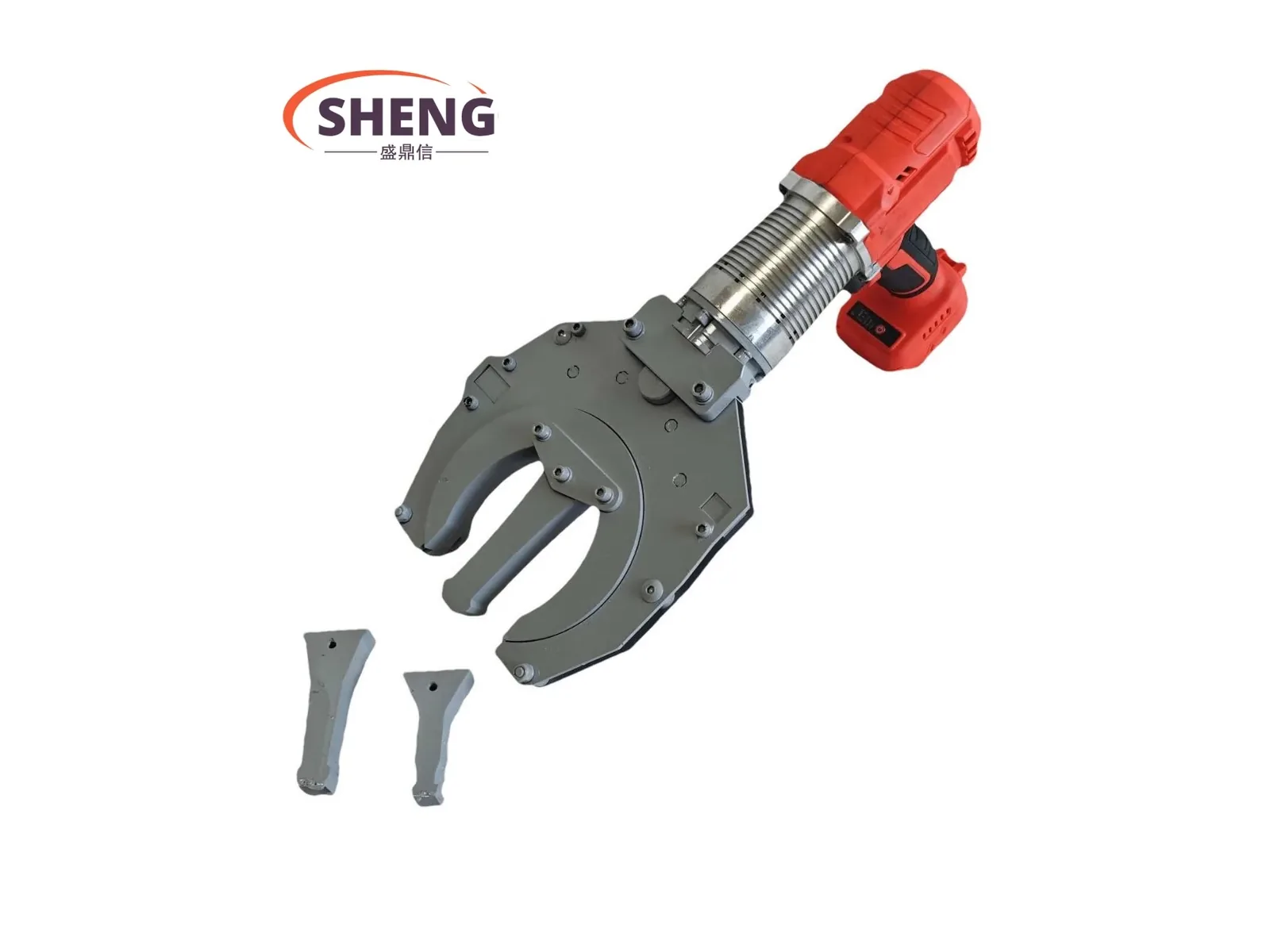

SDX-6ET Electric Turnbuckle Bolt Wrench

Maximum torque: 800 N·m
Power: 900 W
Clamping range: 10–53 mm
Power supply: Battery / corded dual-power operation

Product overview

Electric fastening for open-body turnbuckles

Technical data

Technical Specifications

Maximum torque	800 N·m
Maximum speed	40 r/min
Power	900 W
Voltage	21 V / 110 V / 230 V
Clamping range	10–53 mm
Head width	150 mm
Power supply	Battery / corded dual-power operation
Net weight	6.25 kg, excluding battery

Product media

Product Details & Field Operation

Verified model-specific product views and operation footage for the SDX-6ET.

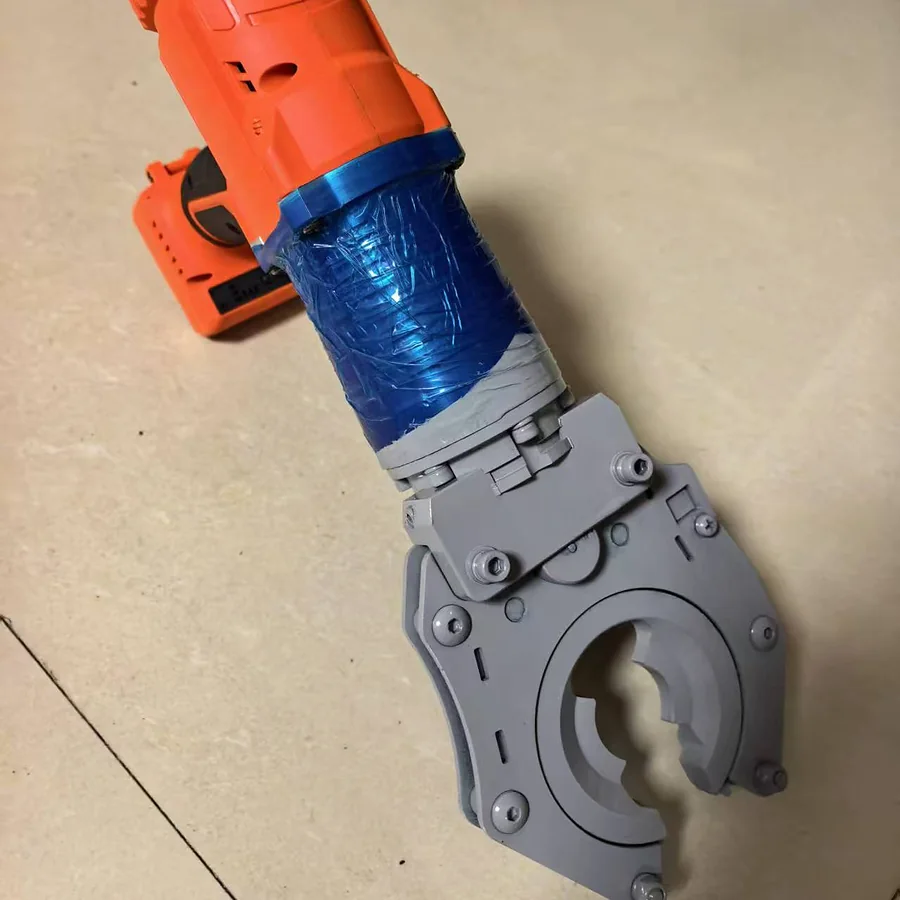

Rear and side view of the SDX-6ET turnbuckle wrench body and clamping head — Rear and side tool view

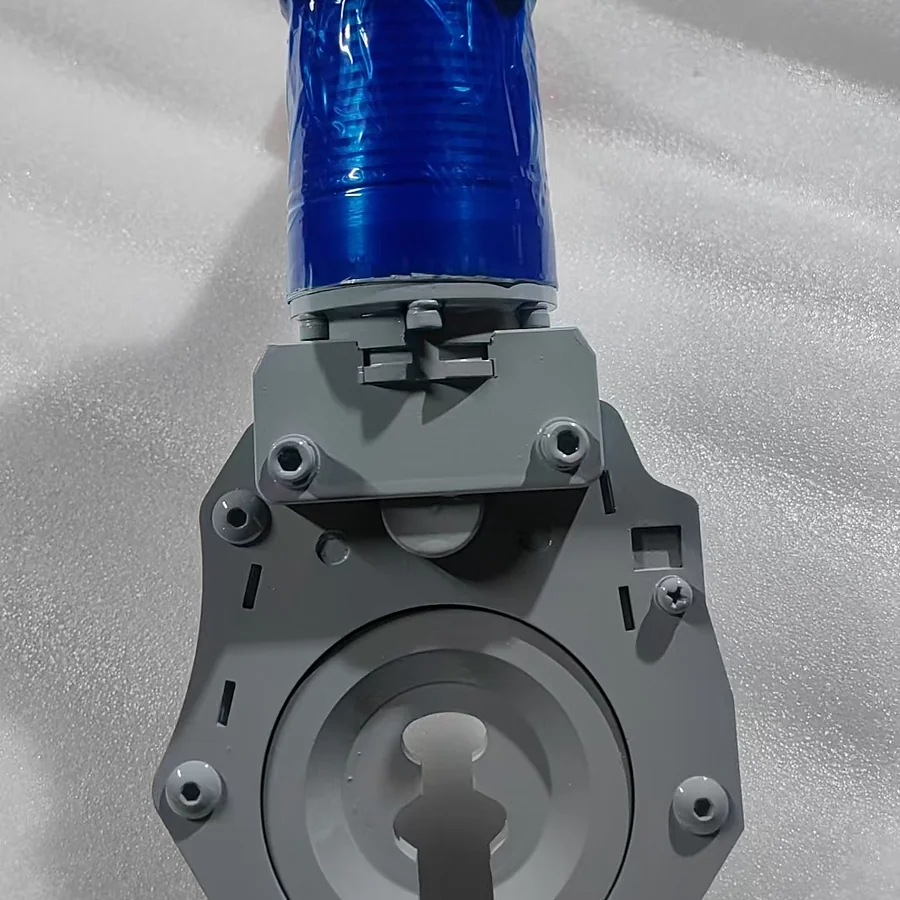

Front detail of the open clamping head on the SDX-6ET turnbuckle wrench — Open clamping head detail

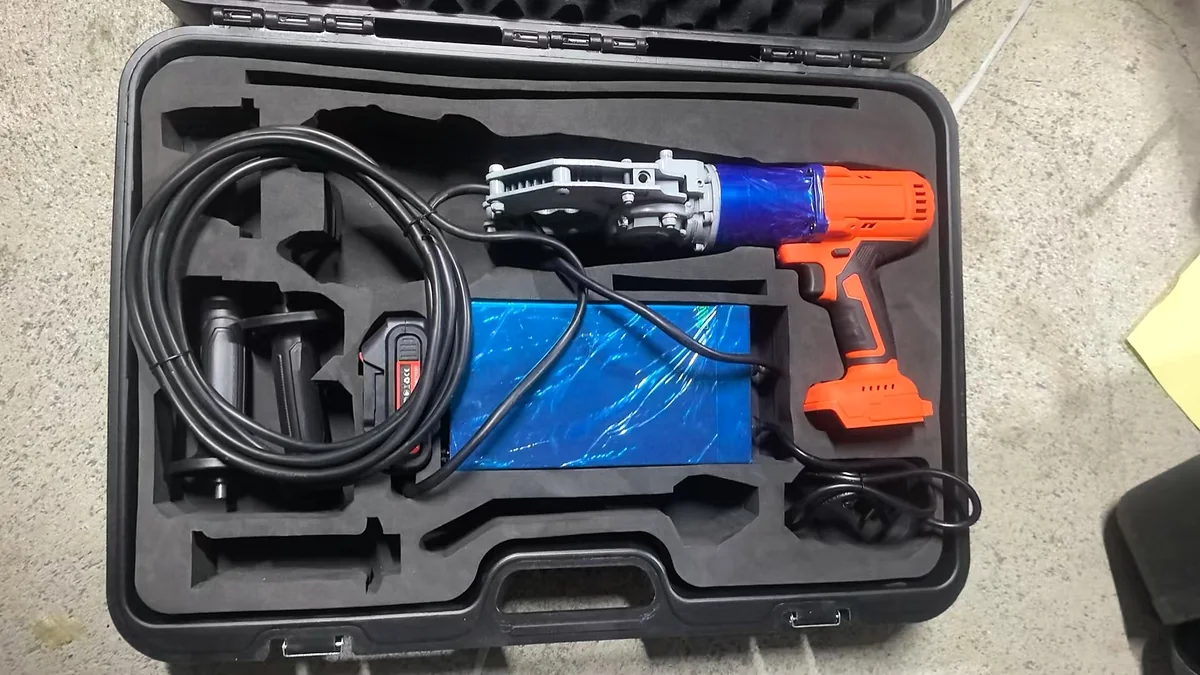

SDX-6ET turnbuckle wrench and components shown in a fitted carrying case — Fitted carrying case view

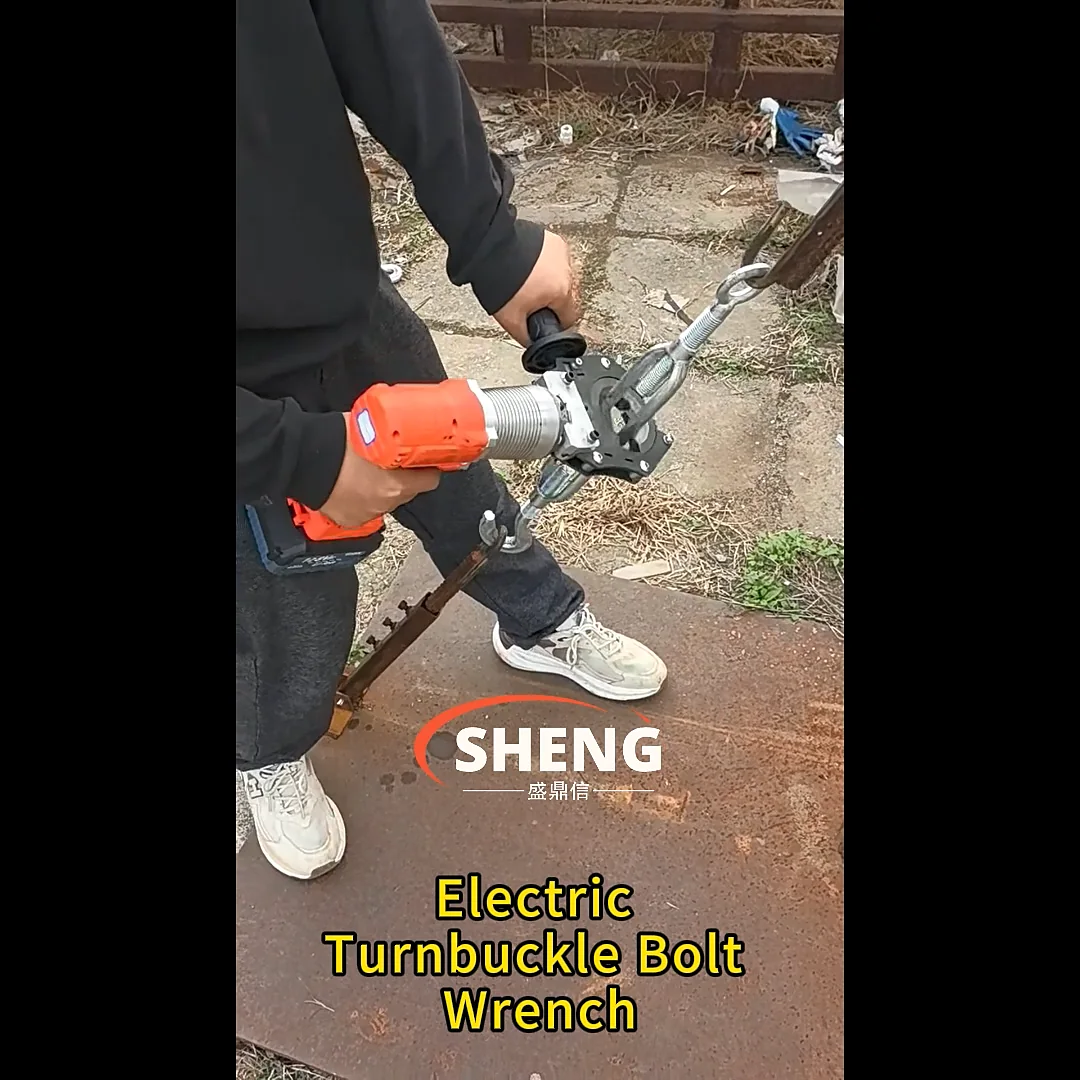

Operator using the SDX-6ET Electric Turnbuckle Bolt Wrench on a turnbuckle — Turnbuckle operation in the field

Field operation

See the SDX-6ET in Operation

A demonstration of the SDX-6ET Electric Turnbuckle Bolt Wrench tightening and loosening a turnbuckle connection.

Documentation

Documents & Compliance

Product document

SDX Electric Tools Brochure

PDF · 18.2 MB

Multi-product brochure including the Electric Turnbuckle Wrench series.

View Brochure Download PDF

CE certificates

UDEM International

M.2024.206.C98909

Machinery Directive 2006/42/EC.

Valid through 2029-04-07

View Full Certificate

UDEM International

M.2024.206.C98900

Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU.

Valid through 2029-04-07

View Full Certificate

View referenced CE standards

EN ISO 12100:2010, EN 62841-1:2015+A11:2022, EN 62841-2-2:2014, EN 60204-1:2018, EN IEC 55014-1:2021, EN IEC 55014-2:2021, EN 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A2:2021

OEM / Customization
