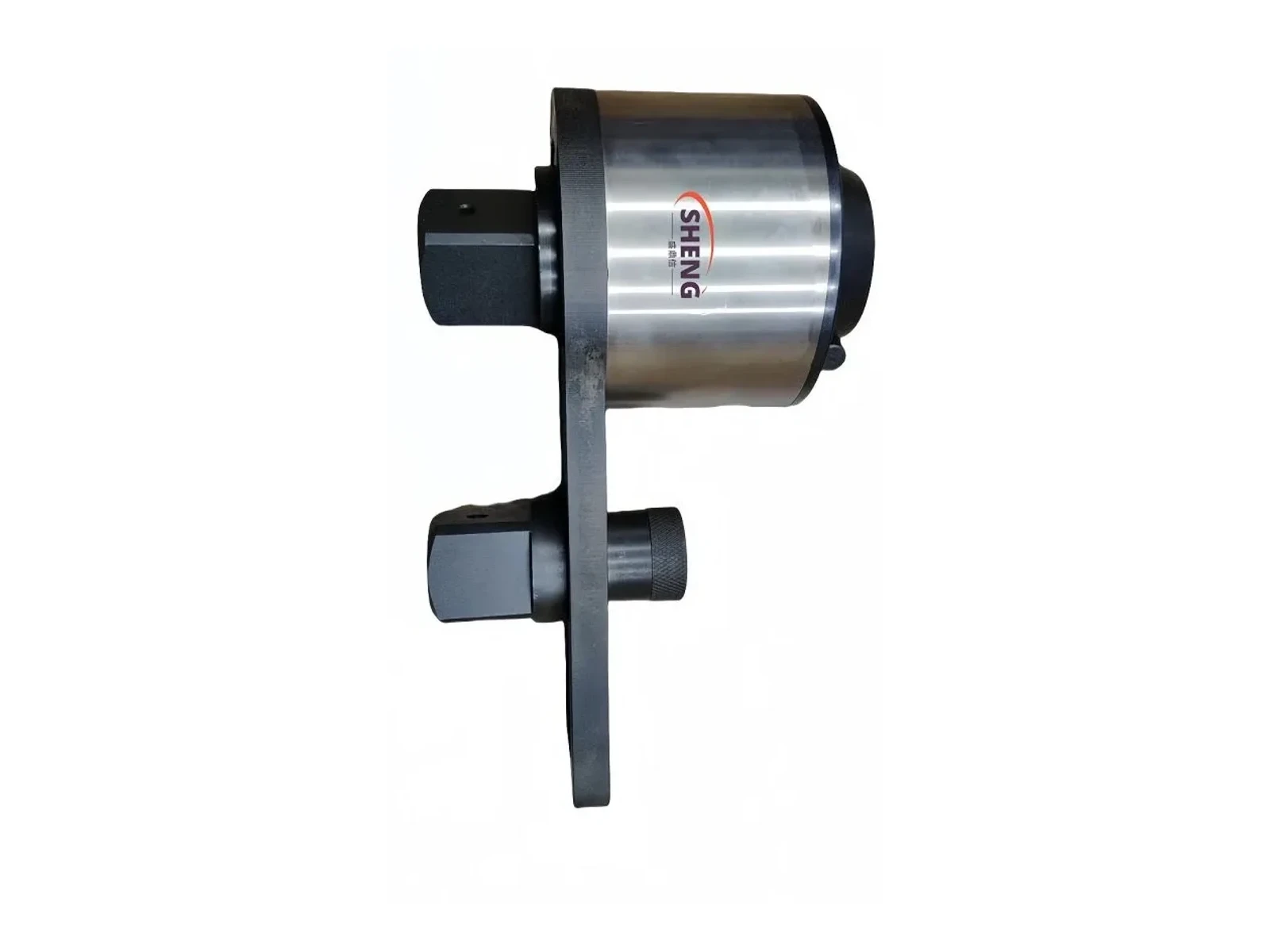

SDX-200CT-01 Flat Type Torque Multiplier

Maximum output torque: 1,500 N·m
Multiplication ratio: 1:4
Input square drive: 1/2 in
Output square drive: 1 in

Product overview

1,500 N·m maximum output torque

Technical data

Technical Specifications

Maximum output torque	1,500 N·m
Multiplication ratio	1:4
Input square drive	1/2 in
Output square drive	1 in
Dimensions (A × B × C)	82 × 97 × 76.7–127.3 mm
Applicable bolt range	M20–M30
Across flats	S30–S46
Weight	2.4 kg

Compare configurations

Model Selection

Choose the SDX-200CT-01 when the required maximum output torque is within 1,500 N·m, then confirm the 1:4 ratio, square drives, bolt and across-flats ranges, dimensions and available reaction point.

Compare torque capacity and multiplication ratio together with the bolt range and tool dimensions. The shared output drive alone does not distinguish these two flat-type configurations.

Compare SDX-200CT-01 with SDX-200CT-02
Selection factor	SDX-200CT-01	SDX-200CT-02
Maximum output torque	1,500 N·m	2,000 N·m
Multiplication ratio	1:4	1:13
Output square drive	1 in	1 in
Applicable bolt range	M20–M30	M22–M35
Dimensions (A × B × C)	82 × 97 × 76.7–127.3 mm	82 × 120 × 92.7–129.3 mm
Weight	2.4 kg	3.5 kg
