Manual Preset Torque Wrenches

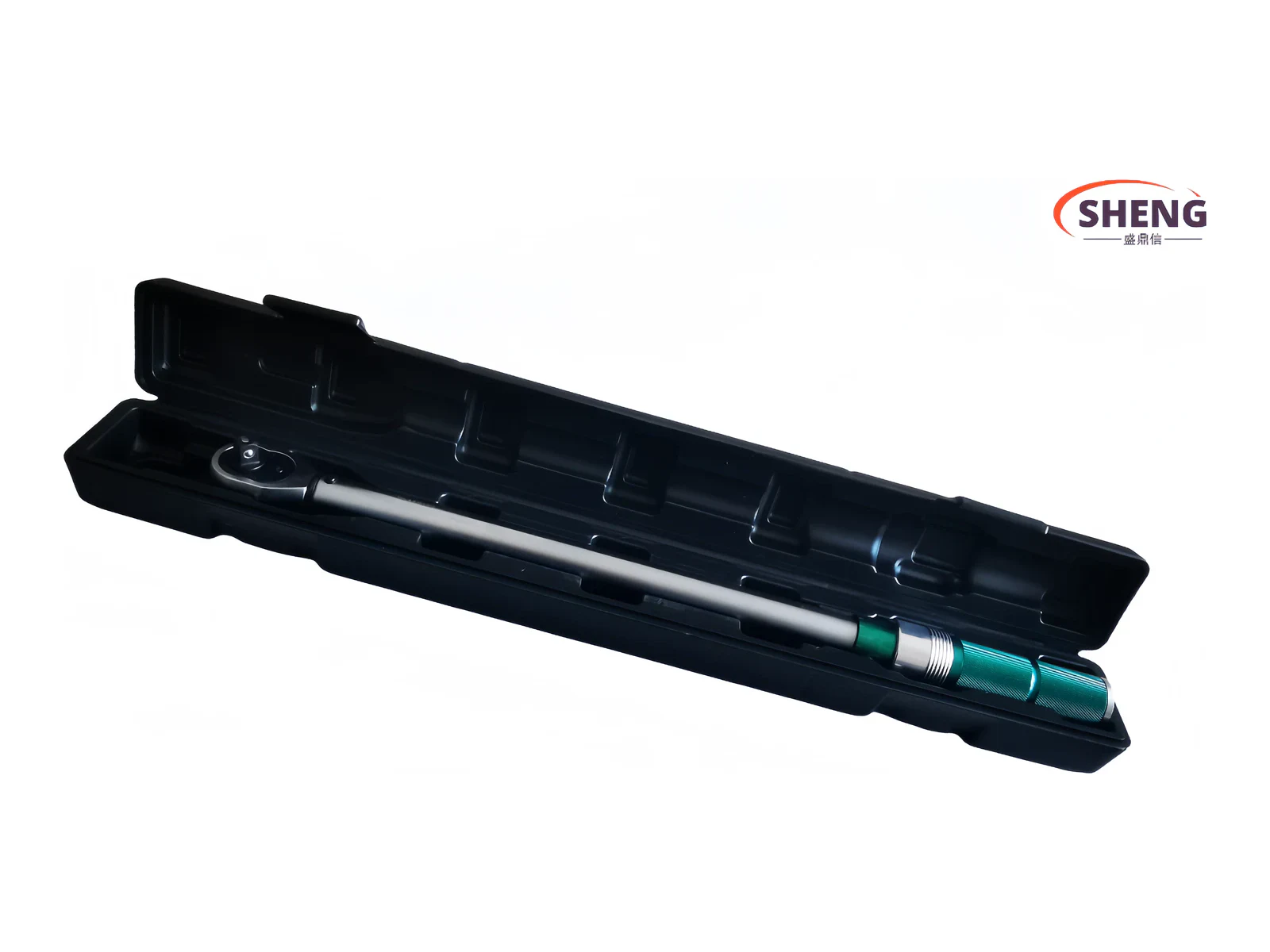

SDX-30HP Manual Preset Torque Wrench
Torque Wrenches & Bolt Tightening Tools
- Torque range
- 5–30 N·m
- Overall length
- 255 mm
- Output square drive
- 3/8 in
Product Series
Manual Preset Torque Wrenches
Adjustable manual preset torque wrenches with a click and tactile indication when the preset torque is reached.
25 Models
Choosing a Model
Compare Models
Start with the required torque range, then compare fine scale, output square drive, overall length and weight across the twenty-five models.
- Work object
- Nuts, bolts and threaded fasteners
- Available Models
- 25 models
- Compare by
- Torque range, Fine scale, Output square drive, Overall length, Weight
Series Models
Choose by Model
Review the model images and key specifications before opening the full product page.
Manual Preset Torque Wrenches
SDX-50HP Manual Preset Torque Wrench
Torque Wrenches & Bolt Tightening Tools
- Torque range
- 10–50 N·m
- Overall length
- 307 mm
- Output square drive
- 3/8 in
Manual Preset Torque Wrenches
SDX-60HP Manual Preset Torque Wrench
Torque Wrenches & Bolt Tightening Tools
- Torque range
- 10–60 N·m
- Overall length
- 307 mm
- Output square drive
- 3/8 in
Manual Preset Torque Wrenches
SDX-100HP Manual Preset Torque Wrench
Torque Wrenches & Bolt Tightening Tools
- Torque range
- 20–100 N·m
- Overall length
- 420 mm
- Output square drive
- 1/2 in
Manual Preset Torque Wrenches
SDX-180HP Manual Preset Torque Wrench
Torque Wrenches & Bolt Tightening Tools
- Torque range
- 40–180 N·m
- Overall length
- 525 mm
- Output square drive
- 1/2 in
Manual Preset Torque Wrenches
SDX-200HP Manual Preset Torque Wrench
Torque Wrenches & Bolt Tightening Tools
- Torque range
- 40–200 N·m
- Overall length
- 525 mm
- Output square drive
- 1/2 in
Manual Preset Torque Wrenches
SDX-230HP Manual Preset Torque Wrench
Torque Wrenches & Bolt Tightening Tools
- Torque range
- 50–230 N·m
- Overall length
- 525 mm
- Output square drive
- 1/2 in
Manual Preset Torque Wrenches
SDX-300HP Manual Preset Torque Wrench
Torque Wrenches & Bolt Tightening Tools
- Torque range
- 60–300 N·m
- Overall length
- 680 mm
- Output square drive
- 1/2 in
Manual Preset Torque Wrenches
SDX-360HP Manual Preset Torque Wrench
Torque Wrenches & Bolt Tightening Tools
- Torque range
- 60–360 N·m
- Overall length
- 680 mm
- Output square drive
- 3/4 in
Manual Preset Torque Wrenches
SDX-400HP Manual Preset Torque Wrench
Torque Wrenches & Bolt Tightening Tools
- Torque range
- 100–400 N·m
- Overall length
- 780 mm
- Output square drive
- 3/4 in
Manual Preset Torque Wrenches
SDX-450HP Manual Preset Torque Wrench
Torque Wrenches & Bolt Tightening Tools
- Torque range
- 100–450 N·m
- Overall length
- 890 mm
- Output square drive
- 3/4 in
Manual Preset Torque Wrenches
SDX-500HP Manual Preset Torque Wrench
Torque Wrenches & Bolt Tightening Tools
- Torque range
- 100–500 N·m
- Overall length
- 890 mm
- Output square drive
- 3/4 in
Manual Preset Torque Wrenches
SDX-600HP Manual Preset Torque Wrench
Torque Wrenches & Bolt Tightening Tools
- Torque range
- 150–600 N·m
- Overall length
- 890 mm
- Output square drive
- 3/4 in
Manual Preset Torque Wrenches
SDX-680HP Manual Preset Torque Wrench
Torque Wrenches & Bolt Tightening Tools
- Torque range
- 200–680 N·m
- Overall length
- 1,098 mm
- Output square drive
- 3/4 in
Manual Preset Torque Wrenches
SDX-760HP Manual Preset Torque Wrench
Torque Wrenches & Bolt Tightening Tools
- Torque range
- 200–760 N·m
- Overall length
- 1,098 mm
- Output square drive
- 3/4 in
Manual Preset Torque Wrenches
SDX-800HP Manual Preset Torque Wrench
Torque Wrenches & Bolt Tightening Tools
- Torque range
- 200–800 N·m
- Overall length
- 1,098 mm
- Output square drive
- 3/4 in
Manual Preset Torque Wrenches
SDX-1000HP Manual Preset Torque Wrench
Torque Wrenches & Bolt Tightening Tools
- Torque range
- 200–1,000 N·m
- Overall length
- 1,295 mm
- Output square drive
- 1 in
Manual Preset Torque Wrenches
SDX-1200HP Manual Preset Torque Wrench
Torque Wrenches & Bolt Tightening Tools
- Torque range
- 400–1,200 N·m
- Overall length
- 1,300 mm
- Output square drive
- 1 in
Manual Preset Torque Wrenches
SDX-1500HP Manual Preset Torque Wrench
Torque Wrenches & Bolt Tightening Tools
- Torque range
- 450–1,500 N·m
- Overall length
- 1,300 mm
- Output square drive
- 1 in
Manual Preset Torque Wrenches
SDX-2000HP Manual Preset Torque Wrench
Torque Wrenches & Bolt Tightening Tools
- Torque range
- 720–2,000 N·m
- Overall length
- 1,300 mm
- Output square drive
- 1 in
Manual Preset Torque Wrenches
SDX-2500HP Manual Preset Torque Wrench
Torque Wrenches & Bolt Tightening Tools
- Torque range
- 900–2,500 N·m
- Overall length
- 1,400 mm
- Output square drive
- 1 in
Manual Preset Torque Wrenches
SDX-3000HP Manual Preset Torque Wrench
Torque Wrenches & Bolt Tightening Tools
- Torque range
- 1,000–3,000 N·m
- Overall length
- 1,400 mm
- Output square drive
- 1 in
Manual Preset Torque Wrenches
SDX-4000HP Manual Preset Torque Wrench
Torque Wrenches & Bolt Tightening Tools
- Torque range
- 1,600–4,000 N·m
- Overall length
- 1,500 mm
- Output square drive
- 1-1/2 in
Manual Preset Torque Wrenches
SDX-5000HP Manual Preset Torque Wrench
Torque Wrenches & Bolt Tightening Tools
- Torque range
- 2,200–5,000 N·m
- Overall length
- 1,605 mm
- Output square drive
- 1-1/2 in
Manual Preset Torque Wrenches
SDX-6000HP Manual Preset Torque Wrench
Torque Wrenches & Bolt Tightening Tools
- Torque range
- 2,800–6,000 N·m
- Overall length
- 1,605 mm
- Output square drive
- 1-1/2 in
Model Comparison
Compare Model Specifications
Compare the key specifications below, then open a model for full product details.
Scroll the table horizontally to review every column.
| Model | Torque range | Fine scale | Output square drive | Overall length | Weight | Product page |
|---|---|---|---|---|---|---|
| SDX-30HP | 5–30 N·m | 0.25 N·m | 3/8 in | 255 mm | 0.45 kg | View Model |
| SDX-50HP | 10–50 N·m | 0.5 N·m | 3/8 in | 307 mm | 0.55 kg | View Model |
| SDX-60HP | 10–60 N·m | 0.5 N·m | 3/8 in | 307 mm | 0.55 kg | View Model |
| SDX-100HP | 20–100 N·m | 1 N·m | 1/2 in | 420 mm | 0.9 kg | View Model |
| SDX-180HP | 40–180 N·m | 1 N·m | 1/2 in | 525 mm | 1.5 kg | View Model |
| SDX-200HP | 40–200 N·m | 1 N·m | 1/2 in | 525 mm | 1.5 kg | View Model |
| SDX-230HP | 50–230 N·m | 1 N·m | 1/2 in | 525 mm | 1.5 kg | View Model |
| SDX-300HP | 60–300 N·m | 1.5 N·m | 1/2 in | 680 mm | 2.85 kg | View Model |
| SDX-360HP | 60–360 N·m | 2 N·m | 3/4 in | 680 mm | 3.15 kg | View Model |
| SDX-400HP | 100–400 N·m | 2 N·m | 3/4 in | 780 mm | 3.15 kg | View Model |
| SDX-450HP | 100–450 N·m | 2.5 N·m | 3/4 in | 890 mm | 3.5 kg | View Model |
| SDX-500HP | 100–500 N·m | 2.5 N·m | 3/4 in | 890 mm | 3.5 kg | View Model |
| SDX-600HP | 150–600 N·m | 3 N·m | 3/4 in | 890 mm | 3.5 kg | View Model |
| SDX-680HP | 200–680 N·m | 4 N·m | 3/4 in | 1,098 mm | 6.5 kg | View Model |
| SDX-760HP | 200–760 N·m | 4 N·m | 3/4 in | 1,098 mm | 6.5 kg | View Model |
| SDX-800HP | 200–800 N·m | 4 N·m | 3/4 in | 1,098 mm | 6.5 kg | View Model |
| SDX-1000HP | 200–1,000 N·m | 5 N·m | 1 in | 1,295 mm | 7.8 kg | View Model |
| SDX-1200HP | 400–1,200 N·m | 5 N·m | 1 in | 1,300 mm | 8 kg | View Model |
| SDX-1500HP | 450–1,500 N·m | 7 N·m | 1 in | 1,300 mm | 8.5 kg | View Model |
| SDX-2000HP | 720–2,000 N·m | 16 N·m | 1 in | 1,300 mm | 8.5 kg | View Model |
| SDX-2500HP | 900–2,500 N·m | 20 N·m | 1 in | 1,400 mm | 14.45 kg | View Model |
| SDX-3000HP | 1,000–3,000 N·m | 30 N·m | 1 in | 1,400 mm | 14.8 kg | View Model |
| SDX-4000HP | 1,600–4,000 N·m | 30 N·m | 1-1/2 in | 1,500 mm | 25 kg | View Model |
| SDX-5000HP | 2,200–5,000 N·m | 40 N·m | 1-1/2 in | 1,605 mm | 26.5 kg | View Model |
| SDX-6000HP | 2,800–6,000 N·m | 40 N·m | 1-1/2 in | 1,605 mm | 26.5 kg | View Model |
Common Questions
Questions Before You Choose
Use these questions to focus your model comparison before you inquire.
How do I choose a preset torque wrench model?
Start with a torque range that covers the required setting, then confirm the fine scale, output square drive, overall length and weight in the comparison table.
What happens when the preset torque is reached?
The series description states that the wrench provides a click and tactile indication when the preset torque is reached.
Where can I find the exact listed values?
Open a model page from the comparison table to review its model-specific Technical Specifications.
