Reaction Arm Torque Multipliers

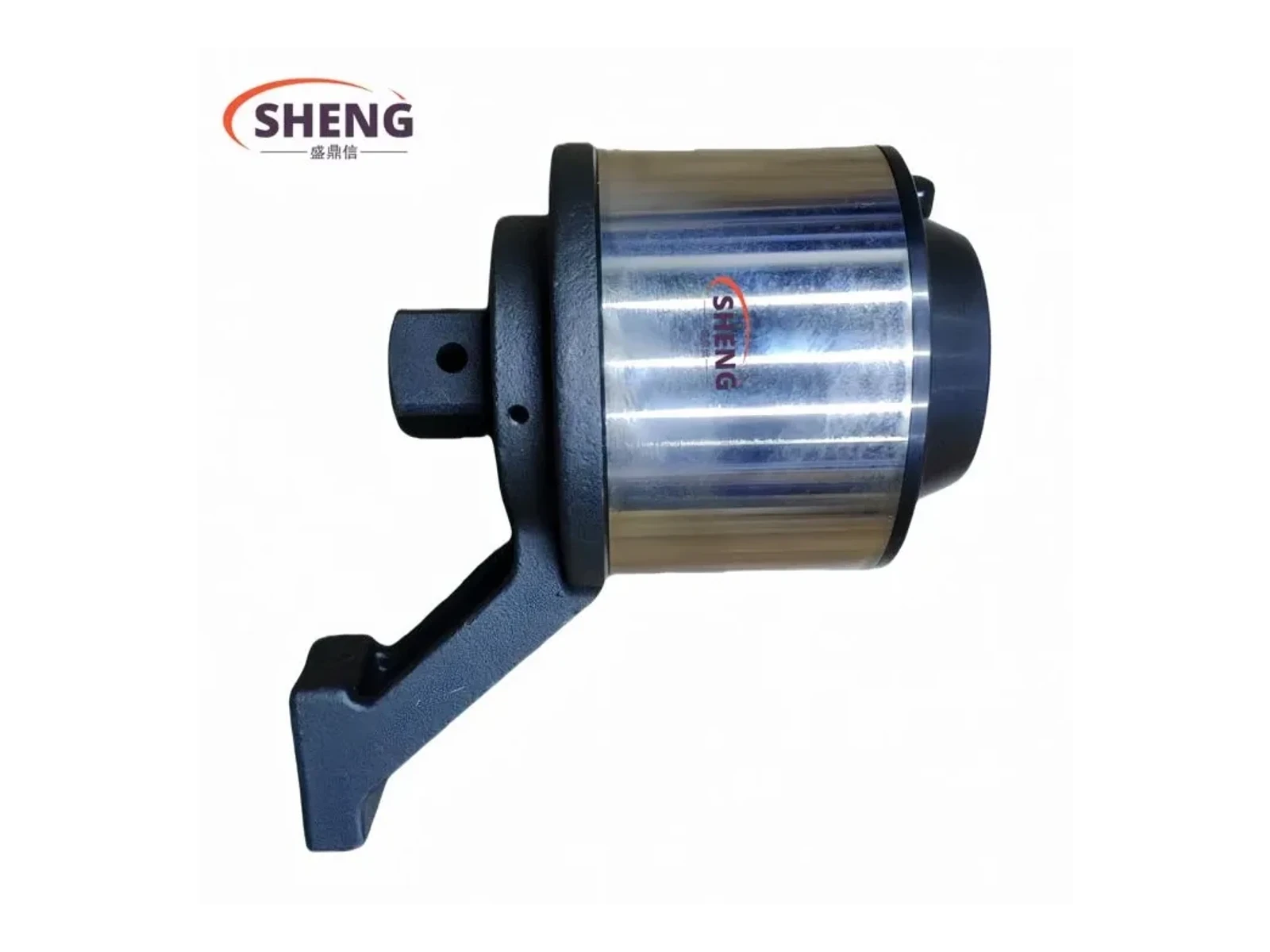

SDX-100CT-01 Reaction Arm Torque Multiplier
Torque Wrenches & Bolt Tightening Tools
- Maximum output torque
- 1,500 N·m
- Multiplication ratio
- 1:4
- Output square drive
- 1 in
Product Series
Reaction Arm Torque Multipliers
Manual torque multipliers with an offset reaction arm for tightening and loosening nuts and bolts.
6 Models
Choosing a Model
Compare Models
Compare maximum output torque, multiplication ratio, square drives, dimensions, bolt range, across-flats range and weight across the six models.
- Work object
- Nuts and bolts
- Available Models
- 6 models
- Compare by
- Maximum output torque, Multiplication ratio, Output square drive, Applicable bolt range, Across flats, Weight
Reaction Structure
Offset reaction arm

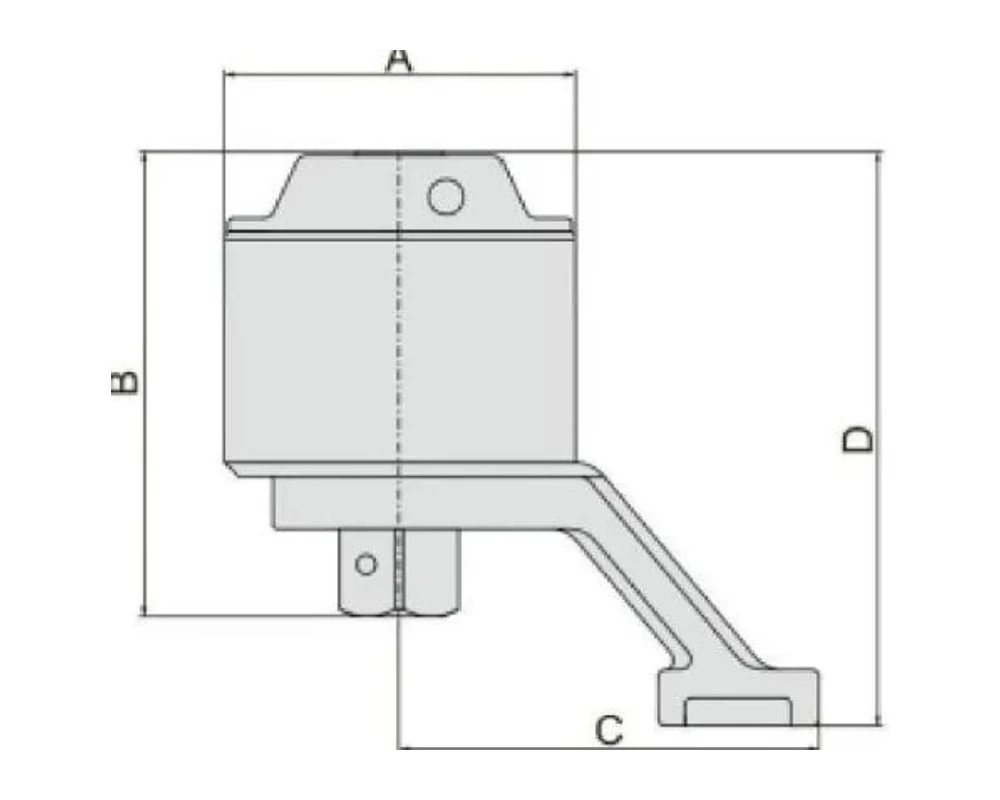

The gear housing uses an offset reaction arm. Confirm that the work provides a suitable reaction point for the listed dimensions.
Series Models
Choose by Model
Review the model images and key specifications before opening the full product page.
Reaction Arm Torque Multipliers
SDX-100CT-02 Reaction Arm Torque Multiplier
Torque Wrenches & Bolt Tightening Tools
- Maximum output torque
- 2,000 N·m
- Multiplication ratio
- 1:13
- Output square drive
- 1 in
Reaction Arm Torque Multipliers
SDX-100CT-03 Reaction Arm Torque Multiplier
Torque Wrenches & Bolt Tightening Tools
- Maximum output torque
- 3,500 N·m
- Multiplication ratio
- 1:16
- Output square drive
- 1 in
Reaction Arm Torque Multipliers
SDX-100CT-04 Reaction Arm Torque Multiplier
Torque Wrenches & Bolt Tightening Tools
- Maximum output torque
- 5,500 N·m
- Multiplication ratio
- 1:21
- Output square drive
- 1½ in
Reaction Arm Torque Multipliers
SDX-100CT-05 Reaction Arm Torque Multiplier
Torque Wrenches & Bolt Tightening Tools
- Maximum output torque
- 7,500 N·m
- Multiplication ratio
- 1:23
- Output square drive
- 1½ in
Reaction Arm Torque Multipliers
SDX-100CT-06 Reaction Arm Torque Multiplier
Torque Wrenches & Bolt Tightening Tools
- Maximum output torque
- 10,000 N·m
- Multiplication ratio
- 1:28
- Output square drive
- 1½ in
Model Comparison
Compare Model Specifications
Compare the key specifications below, then open a model for full product details.
Scroll the table horizontally to review every column.
| Model | Maximum output torque | Multiplication ratio | Output square drive | Applicable bolt range | Across flats | Weight | Product page |
|---|---|---|---|---|---|---|---|
| SDX-100CT-01 | 1,500 N·m | 1:4 | 1 in | M20–M30 | S30–S46 | 2.1 kg | View Model |
| SDX-100CT-02 | 2,000 N·m | 1:13 | 1 in | M22–M35 | S32–S55 | 3.15 kg | View Model |
| SDX-100CT-03 | 3,500 N·m | 1:16 | 1 in | M30–M45 | S46–S70 | 4.9 kg | View Model |
| SDX-100CT-04 | 5,500 N·m | 1:21 | 1½ in | M38–M52 | S55–S80 | 8.1 kg | View Model |
| SDX-100CT-05 | 7,500 N·m | 1:23 | 1½ in | M42–M60 | S65–S90 | 10.6 kg | View Model |
| SDX-100CT-06 | 10,000 N·m | 1:28 | 1½ in | M52–M72 | S80–S105 | 14 kg | View Model |
Common Questions
Questions Before You Choose
Use these questions to focus your model comparison before you inquire.
How do the models differ?
Each model has its own values for Maximum output torque, Multiplication ratio, Output square drive, Applicable bolt range, Across flats, Weight. Use the table to compare them side by side.
Which specifications should I compare?
Start with the fields that match your work requirement: Maximum output torque, Multiplication ratio, Output square drive, Applicable bolt range, Across flats, Weight. Confirm project-specific configuration details with SDX before ordering.
Where can I find full product specifications?
Use the View Model link in the comparison table to open the full product details for that model.
